Lamiera di acciaio zincata a caldo con spessore di 0,14-0,5 mm
Tipo di pagamento: | L/C,T/T,Western Union |
---|---|
Incoterm: | FOB,CFR,CIF |
Quantità di ordine minimo: | 25 Ton |
Informazioni basilari
Modello: steel sheet
marchio: WZH
Additional Info
Pacchetto: Pacchetto standard di navigazione
produttività: 10 ton per day
Trasporti: Ocean
Luogo di origine: Cina
Supportare: 10 tons per day
Certificati : ISO 9001:2008
Codice SA: 72107000
Porta: Tianjin
Tipo di pagamento: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF
Descrizione del prodotto

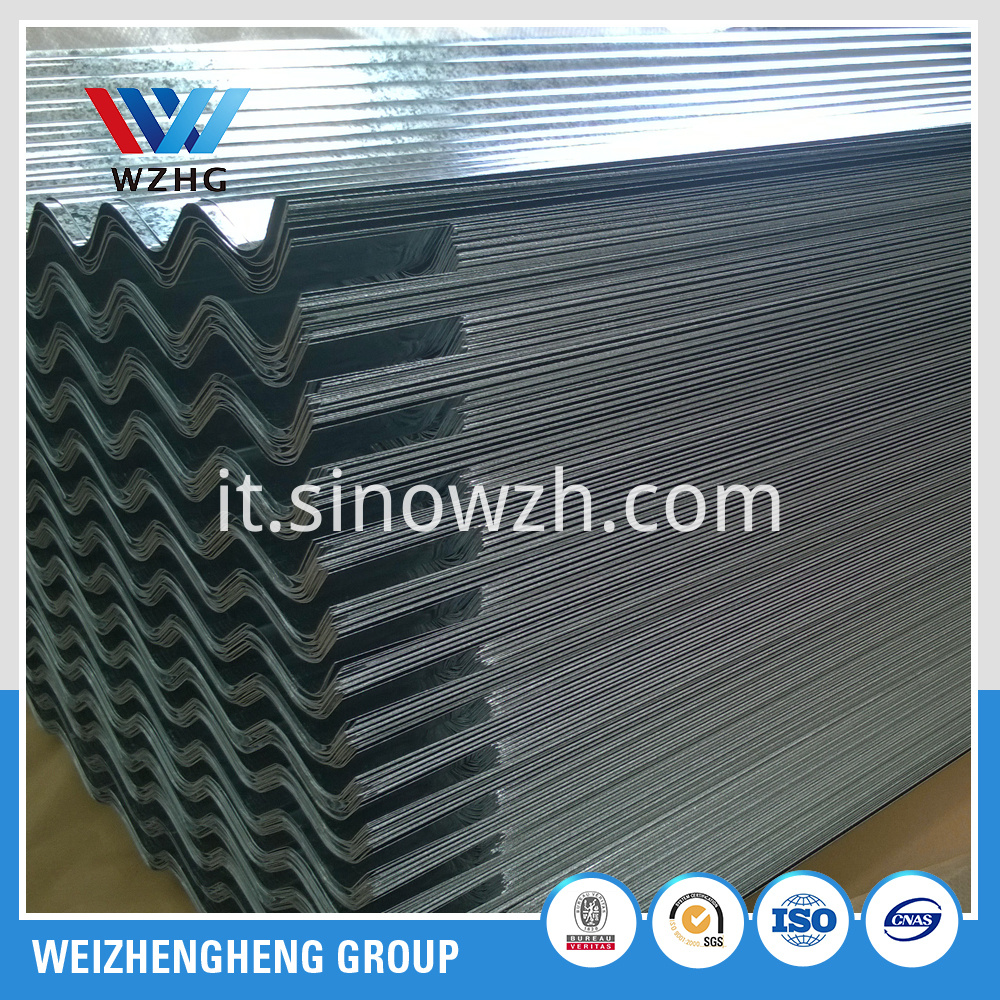

Lamiera di acciaio zincato a freddo
Lamiera / bobina / lamiera zincate GI zincate
1, technigue: COLLED ROLLED (HR)
2, Z inc Rivestimento : z 40-z275, Az40-Az150
3, spessore: 0,14-0,5 mm
4, larghezza: 665-1250 mm
5, lunghezza: secondo il vostro requisito
6, ordine minimo: 50 tonnellate
7, dettagli d'imballaggio : Imballaggio di esportazione completamente seaworthy
8, condizioni di prezzo: Fob Tianjin, CIF, CFR
Commodity |
Galvanized steel sheet roof / roofing sheet / Galvanized steel coil |
Techinical Standard: |
ASTM/GB |
Grade |
SGCC, DX51D |
Types |
HDGI |
Thickness |
0.13-0.6mm |
Width before corrugated |
762-1000mm |
Width after corrugated |
665-914mm |
Length |
1800-4000mm |
Zinc coating |
Z60-180 g/m2 |
Spangle |
None/ Regular/Big spangle |
Sheet weight |
2-2.5MT/package |
Profile model |
YX18-76-665/ YX18-76-800 / YX18-76-900/ YX12-65-850 |
Application |
For construction building roof or wall cladding |
Price terms |
FOB, CFR, CIF |
Payment terms |
30%TT in advance+70% TT or irrevocable 70%L/C at sight |
Delivery time |
25 to 35 days after recepit of 30% TT |
Remarks |
Insurance is all risks |
MTC will be handed on with shipping documents |
|
We accept SGS or BV certificatation test |

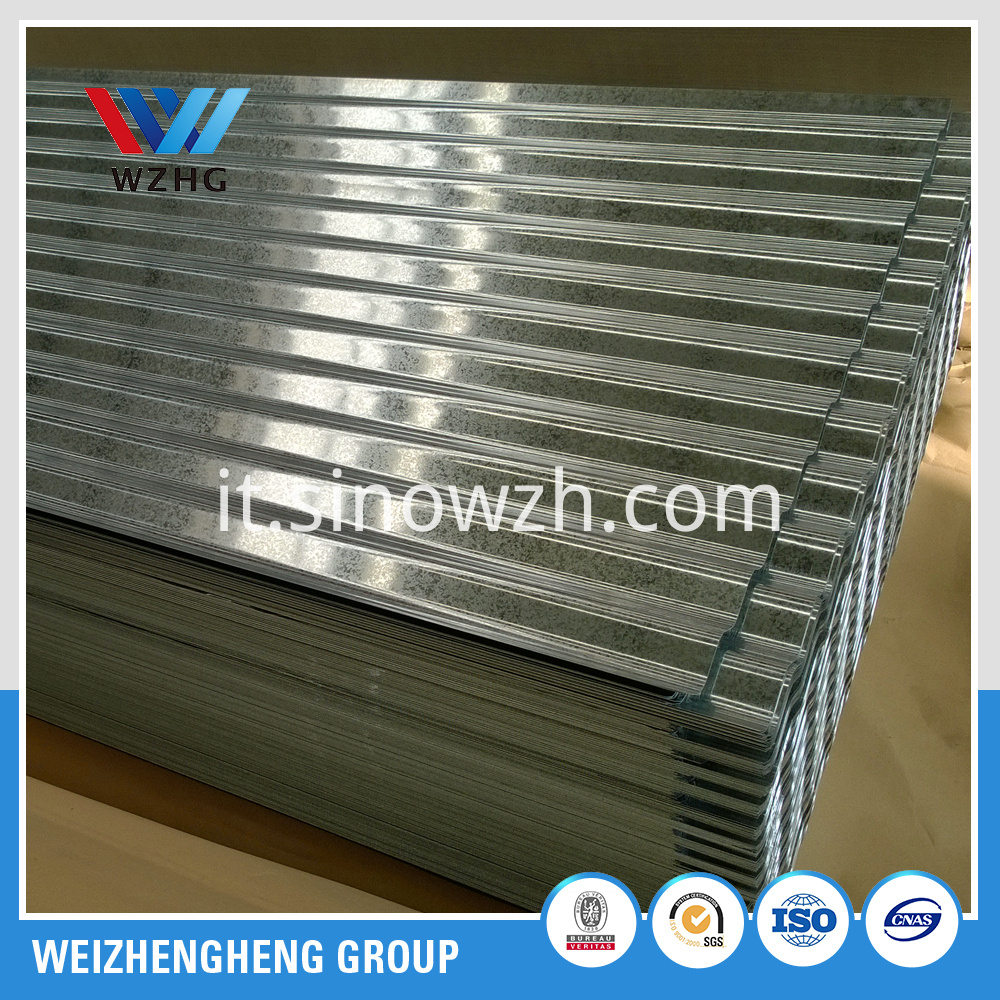

Lenzuolo semplice GI, prezzo lamiera plian gi / prezzo acciaio zincato
Shape | plain or corrugation |
Advantage |
waterproof, fireproof, light weight, easy installation and beautiful appearance. |
Width range | 665mm to 1250mm |
Zinc coating range | Z40-Z275 |
The thickness range | 0.14mm to 2.0mm |
Length per shee trange |
1 meter to 4 meter |
Loading and Shipping | |
we have professional work and machine to make sure goods not change shape when goods loading into containers. |
|
Produce Process |
|
step 1). cold rolled steel coiL step 2). galvanized steel coil/galvalumed steel coil step 3). cuting steel coil into steel sheet step 4). rolling steel sheet in to corrugated sheet |
Bobina in acciaio GI e bobina in acciaio zincato
Mechanical Properties |
|||
Grade |
Yield Strength MPa |
Tensile Strength MPa |
Elongation % |
SGCC(DX51D+AZ) |
≥205 |
≥270 |
≥22 |
SGCD(DX52D+AZ) |
≥140 |
≥270 |
≥38 |
S250GD+AZ |
≥250 |
≥330 |
≥19 |
S350GD+AZ |
≥350 |
≥420 |
≥16 |
Elenco prodotti : Bobina d'acciaio & lamiere di acciaio > Lamiera di acciaio preverniciata
